Console Light Web Monitoring Panel

Angie provides a wide range of possibilities to monitor its work; in addition to the metrics API and the Prometheus module, you can use a visual console that installs beside the server.

Console Light

Console Light is a lightweight, real-time activity monitoring interface that displays key server load and performance metrics. The console is based on the API capabilities of Angie; activity monitoring data is generated in real time. In addition, the console allows you to dynamically modify Angie configuration where the API itself provides this capability.

Example of a deployed and configured console: https://console.angie.software/

Version History

Version	Release Date	Changes
1.8.0	03.07.2025	Display of response time metrics for proxied HTTP and TCP/UDP servers
1.7.2	07.04.2025	Added "busy" option in filter controller on the "HTTP/TCP/UDP Upstreams" pages.
1.7.1	04.04.2025	Fixed incorrect values in the "HTTP/Location Zones" tables on the "HTTP Zones" page.
1.7.0	02.04.2025	Display exact data volumes in bytes on mouse hover New busy status for upstream peers in the statistics API, indicating that a peer has reached the limit configured by the max_conns parameter Fixed documentation links
1.6.1	27.01.2025	Fixed typos Fixed a development-time project build issue
1.6.0	23.01.2025	Internationalization support with available locales: en, ru. Sticky header feature added to the table component. Support for data measurement units in pebibytes (PiB). Fixed incorrect value counter in the HTTP Upstreams widget on the main page. Default values are now correctly used on the HTTP Upstreams page in the response context.
1.5.0		Not publicly released.
1.4.0	08.08.2024	Added monitoring status display in the website favicon.
1.3.0	28.04.2024	Added the ability to set a server to the draining state in the upstream context.
1.2.1	26.12.2023	Added active health checks in the Stream context.
1.2.0	25.12.2023	Added server editing in the Stream context.

Installation and Configuration

Console Light is published as angie-console-light (Angie) and angie-pro-console-light (Angie PRO) packages in our repositories and can be installed like any other package; alternatively, you can download the source code from our website or GitHub.

After installation, configure the console by adding the following location inside a server block in the server configuration (note the comments):

location /console/ {

    # Local access only
    allow 127.0.0.1;
    deny all;

    auto_redirect on;

    alias /usr/share/angie-console-light/html/;
    # FreeBSD only:
    # alias /usr/local/www/angie-console-light/html/;
    index index.html;

    location /console/api/ {
        api /status/;
    }

    # For editing features to work after authentication (PRO only)
    location /console/api/config/ {

        auth_basic           "Protected site";
        auth_basic_user_file conf/htpasswd;

        api /config/;
    }
}

Don't forget to apply the modified configuration:

$ sudo angie -t && sudo service angie reload

After this, the console will be available on the server specified by the server block, at the path specified for the location; in the example above, the path is set as /console/.

Authentication can be enabled for any API section similar to the example above, for instance:

location /console/server_zones/ {
    auth_basic           "Protected site";
    auth_basic_user_file conf/htpasswd;
}

You can also restrict access to any section of the configured console location, for example:

location /console/api/resolvers/ {
    deny all;
}

Interface

The console is a single screen with a set of tabs, each containing several widgets with monitoring data.

Hint

In the sections below, interface elements are described from left to right.

Angie Tab

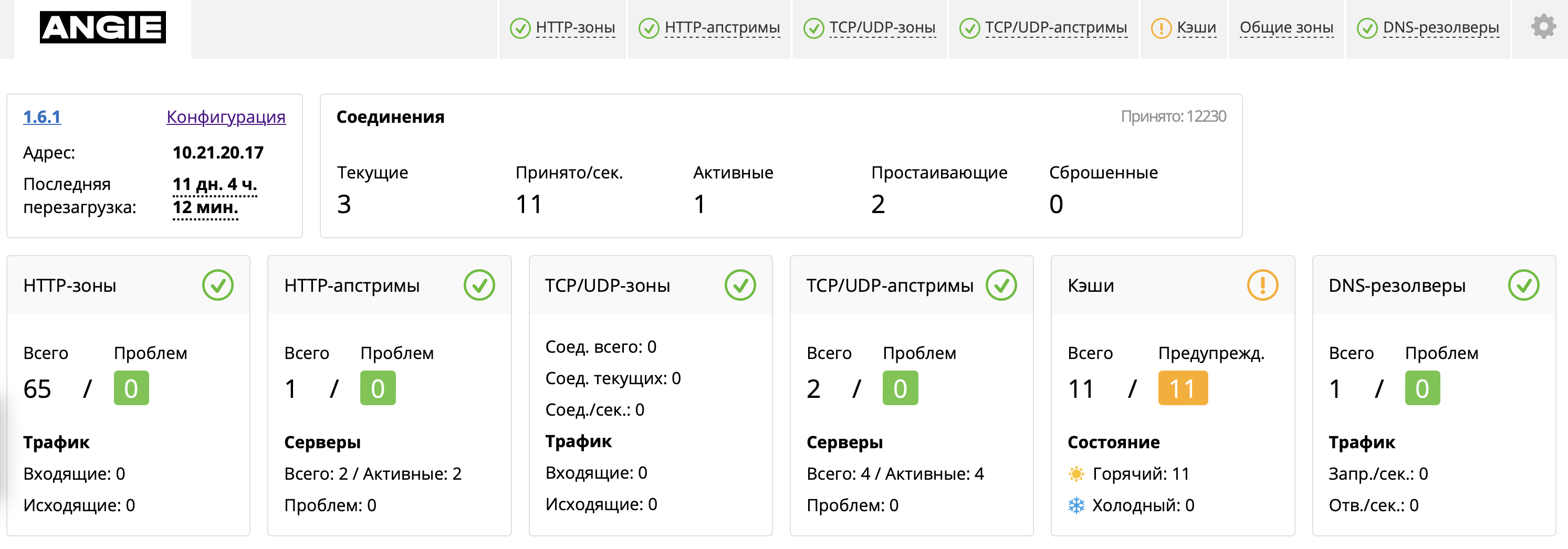

This is the main tab where the key Angie monitoring indicators are displayed in summary form, based on data from several API sections.

About Widget

Displays the Angie version number with a link to the corresponding documentation, as well as the server address and the time of the last configuration reload.

Additionally, if the api_config_files directive is enabled, the Configs link opens a list of configuration files loaded on the server. Each file can then be viewed in a compact format with syntax highlighting.

Connections Widget

Displays basic server connection statistics, generated from the /status/connections/ API section:

Current	Current number of connections
Accepted/s	Number of connections accepted per second
Active	Number of active connections
Idle	Number of idle connections
Dropped	Number of dropped connections

Also available:

Accepted

Total number of connections accepted since the last server reload

HTTP Zones Widget

Attention

Requires setting the status_zone directive in a server or location context.

Displays shared memory zone statistics for the http context, generated from the /status/http/server_zones/ API section:

Total	Total number of zones
Problems	Number of zones with any issues
Traffic	Total incoming and outgoing traffic volume

HTTP Upstreams Widget

Attention

Requires setting the zone directive in an upstream block in the http context.

Displays upstream statistics for the http context, generated from the /status/http/upstreams/ API section:

Total	Total number of upstreams
Problems	Number of upstreams with any issues
Servers	Server statistics broken down by state

TCP/UDP Zones Widget

Attention

Requires setting the following directives:

• status_zone in a server or stream context;

• limit_conn in a server or stream context;

• limit_conn_zone in the stream context.

Example:

stream {

    # ...
    limit_conn_zone $connection zone=limit-conn-stream:10m;

    server {

        # ...
        limit_conn limit-conn-stream 1;
        status_zone foo;
    }
}

Displays shared memory zone statistics for the stream context, generated from the /status/stream/server_zones/ API section:

Conn total	Total number of client connections
Conn current	Current number of client connections
Conn/s	Number of connections processed per second

TCP/UDP Upstreams Widget

Attention

Requires setting the zone directive in an upstream block in the stream context.

Displays upstream statistics for the stream context, generated from the /status/stream/upstreams/ API section:

Total	Total number of upstreams
Problems	Number of upstreams with any issues
Servers	Server statistics broken down by state

HTTP Zones Tab

Attention

Requires setting the status_zone directive in a server or location context.

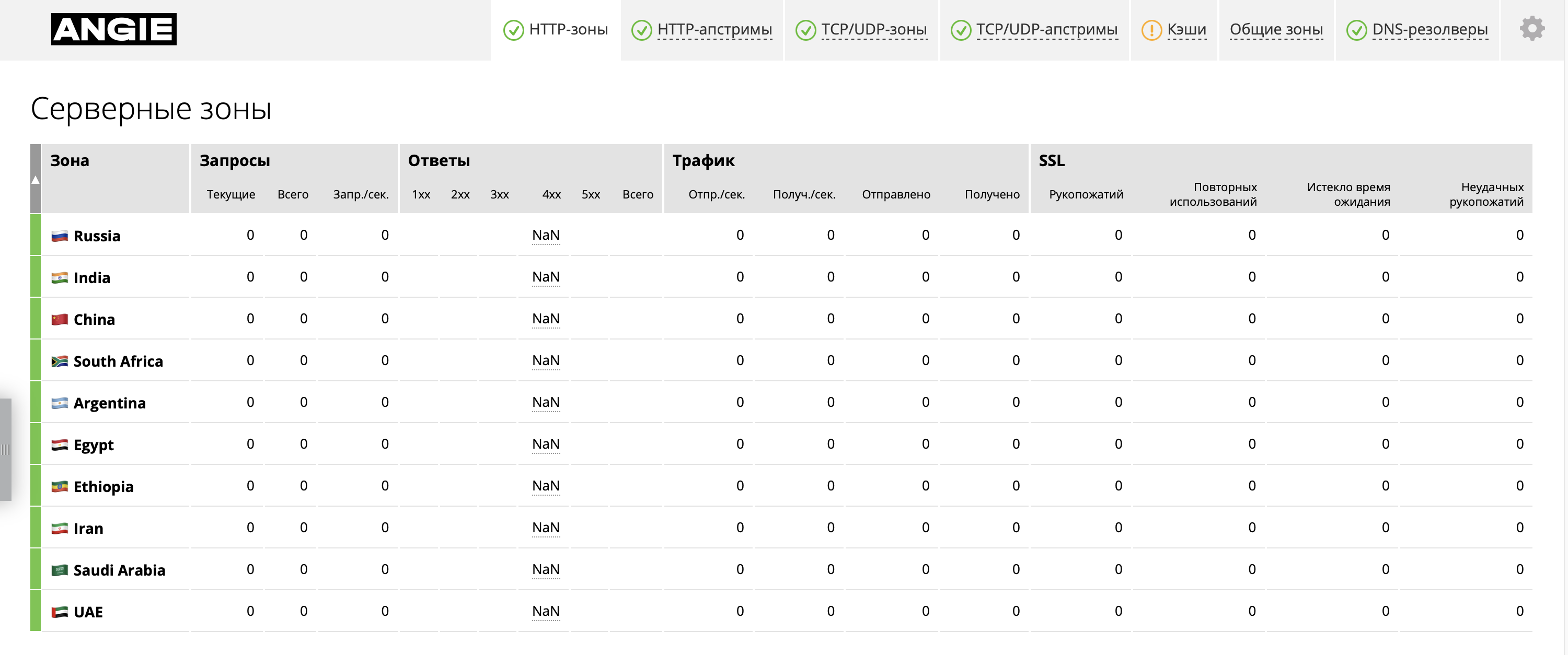

Server Zones Section

Summarizes shared memory zone monitoring statistics for the server context in http, generated from the /status/http/server_zones/ API section. The following data is presented for each zone:

Zone	Zone name Hint Click the arrow next to Zone to sort zones alphabetically or by configuration order.
Requests	Total number of requests and the number of requests per second
Responses	Number of responses broken down by status codes, as well as their total number
Traffic	Outgoing and incoming traffic rates, as well as total volumes of outgoing and incoming traffic
SSL	Aggregate counts of: successful SSL handshakes; SSL session reuses; SSL handshakes with expired timeout; unsuccessful SSL handshakes

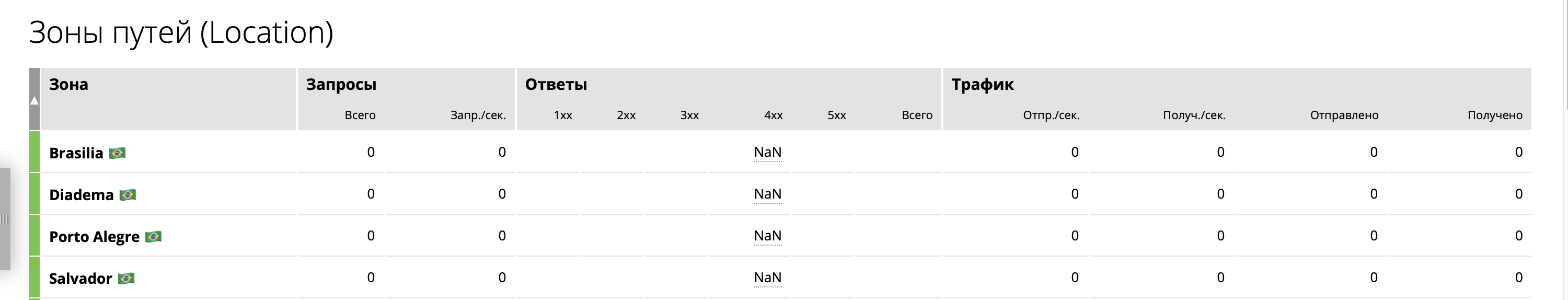

Location Zones Section

Summarizes shared memory zone monitoring statistics for the location context in http, generated from the /status/http/location_zones/ API section. The following data is presented for each zone:

Zone	Zone name Hint Click the arrow next to Zone to sort zones alphabetically or by configuration order.
Requests	Total number of requests and the number of requests per second
Responses	Number of responses broken down by status codes, as well as their total number
Traffic	Outgoing and incoming traffic rates, as well as total volumes of outgoing and incoming traffic

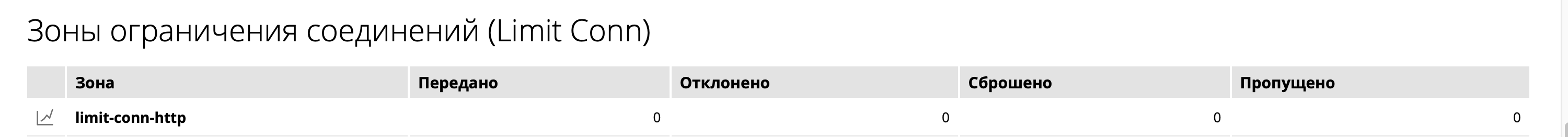

Connection Limit Zones (Limit Conn) Section

Displays statistics of limit_conn zones in the http context, generated from the /status/http/limit_conns/ API section. The following data is presented for each zone:

Zone	Zone name Hint Click the icon next to Zone to open or close the chart with the following indicators.
Passed	Total number of proxied connections
Rejected	Total number of rejected connections
Exhausted	Total number of connections dropped due to zone storage overflow
Skipped	Total number of connections passed with a zero or greater than 255 bytes key

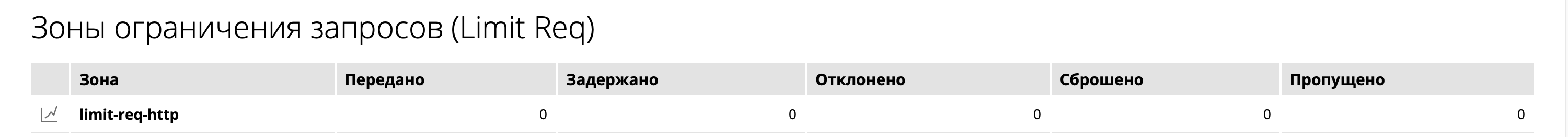

Request Limit Zones (Limit Req) Section

Displays statistics of limit_reqs zones in the http context, generated from the /status/http/limit_reqs/ API section. The following data is presented for each zone:

Zone	Zone name Hint Click the icon next to Zone to open or close the chart with the following indicators.
Passed	Total number of proxied connections
Delayed	Total number of delayed connections
Rejected	Total number of rejected connections
Exhausted	Total number of connections dropped due to zone storage overflow
Skipped	Total number of connections passed with a zero or greater than 255 bytes key

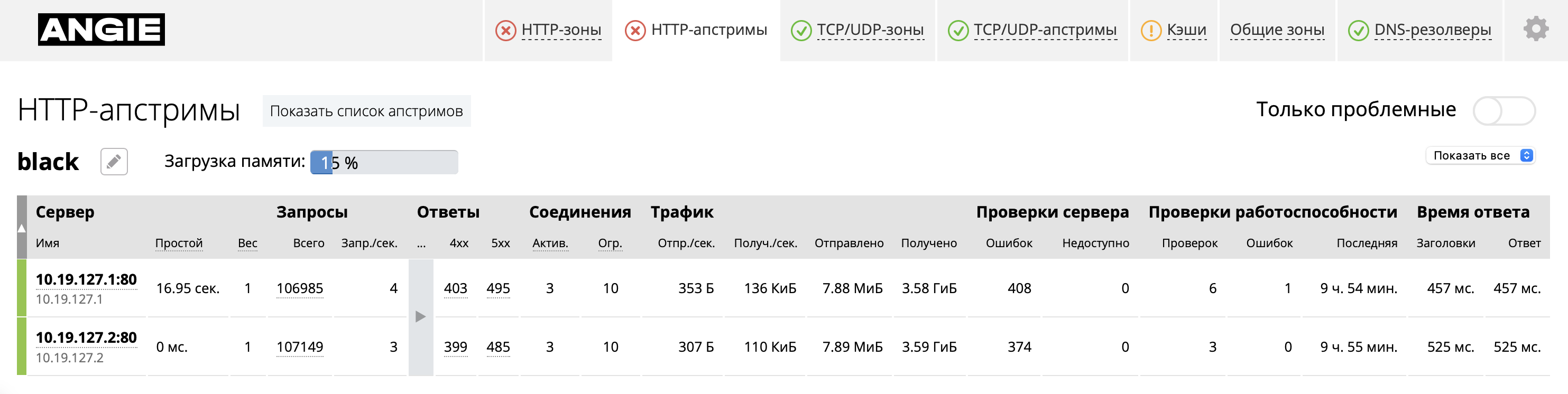

HTTP Upstreams Tab

Attention

Requires setting the zone directive in an upstream block in the http context.

This tab summarizes upstream monitoring statistics for the http context, generated from the /status/http/upstreams/ API section.

• The Show upstreams list button toggles a brief list of upstreams with the number of problematic upstreams and peers.

• The Failed only switch toggles the display mode for problematic upstreams statistics.

• The edit button toggles the upstream editing interface.

• The dropdown list on the right side of each upstream table allows you to filter servers in a specific state (Up, Failed, Checking, Down).

For each upstream, in addition to its name and shared memory zone utilization ratio, the following data is presented:

Server	Names, downtimes, and weights of upstream servers Hint Click the arrow next to Server to sort servers by their state or configuration order.
Requests	Total number and processing rate of requests
Responses	Number of responses broken down by status codes
Connections	Number of active connections and their maximum limit, if set
Traffic	Outgoing and incoming traffic rates, as well as total volumes of outgoing and incoming traffic
Server checks	Number of unsuccessful attempts to contact the server and the number of times the server was considered unavailable (the health object in the API)
Health monitors	Total number of server checks, number of unsuccessful checks, and the time of the last check

Editing upstreams

In Angie PRO, there is an edit button next to each upstream; when clicked, it displays two more buttons:

Edit selected

Edit selected servers within an upstream. Allows you to set the following parameters for all at once: Weight, maximum connection limit (Max_conns), maximum failure limit that marks a server as unavailable (Max_fails), time window for counting failures for the maximum failure limit (Fail_timeout), state (active – enabled, down – disabled, or draining – only receives requests from sessions previously bound through sticky). You can also delete the selected servers here.

Add server

Add a server to the upstream. Allows you to set the following parameters: address, backup server or not, Weight, maximum connection limit (Max_conns), maximum failure limit that marks a server as unavailable (Max_fails), failure counting time window (Fail_timeout), state (active – enabled, down – disabled, or draining – only receives requests from sessions previously bound through sticky).

TCP/UDP Zones Tab

Attention

Requires setting the following directives:

• status_zone in a server or stream context;

• limit_conn in a server or stream context;

• limit_conn_zone in the stream context.

Example:

stream {

    # ...
    limit_conn_zone $connection zone=limit-conn-stream:10m;

    server {

        # ...
        limit_conn limit-conn-stream 1;
        status_zone foo;
    }
}

TCP/UDP Zones Section

Summarizes shared memory zone monitoring statistics for the server context in stream, generated from the /status/stream/server_zones/ API section. The following data is presented for each zone:

Zone	Zone name
Connections	Current and total number of connections, as well as the number of connections per second
Sessions	Number of sessions broken down by status codes, as well as their total number
Traffic	Outgoing and incoming traffic rates, as well as total volumes of outgoing and incoming traffic
SSL	Aggregate counts of: successful SSL handshakes; unsuccessful SSL handshakes; SSL session reuses

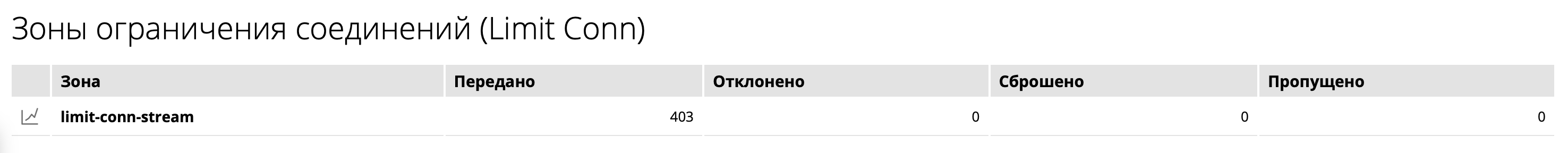

Connection Limit Zones (Limit Conn) Section

Displays statistics of limit_conn zones in the stream context, generated from the /status/stream/limit_conns/ API section. The following data is presented for each zone:

Zone	Zone name Hint Click the icon next to Zone to open or close the chart with the following indicators.
Passed	Total number of proxied connections
Rejected	Total number of rejected connections
Exhausted	Total number of connections dropped due to zone storage overflow
Skipped	Total number of connections passed with a zero or greater than 255 bytes key

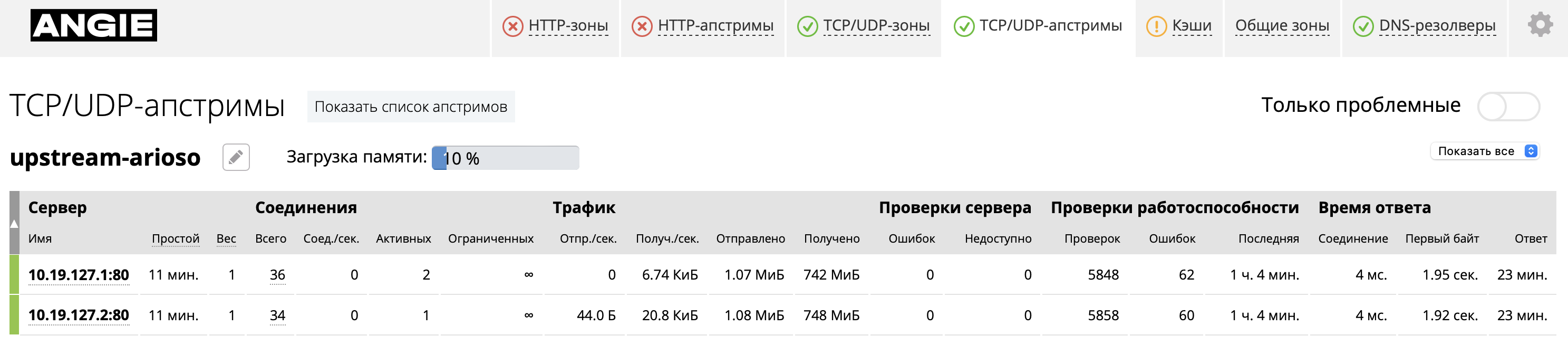

TCP/UDP Upstreams Tab

Attention

Requires setting the zone directive in an upstream block in the stream context.

This tab summarizes upstream monitoring statistics for the stream context, generated from the /status/stream/upstreams/ API section.

• The Show upstreams list button toggles the display of a brief list of upstreams with the number of problematic upstreams and peers.

• The Failed only switch enables and disables the display mode for problematic upstreams statistics.

• The edit button opens the upstream editing widget.

• The dropdown list on the right side of each upstream table allows you to filter servers in a specific state (Up, Failed, Checking, Down).

For each upstream, the following data is presented:

Server	Names, downtimes, and weights of upstream servers Hint Click the arrow next to Server to sort servers by their state or configuration order.
Connections	Number of active connections and their maximum limit, if set
Traffic	Outgoing and incoming traffic rates, as well as total volumes of outgoing and incoming traffic
Server checks	Number of unsuccessful attempts to contact the server and the number of times the server was considered unavailable (the health object in the API)

Editing upstreams

In Angie PRO, there is an edit button next to each upstream; when clicked, it displays two more buttons:

Edit selected

Edit selected servers within an upstream. Allows you to set the following parameters for all at once: Weight, maximum connection limit (Max_conns), maximum failure limit that marks a server as unavailable (Max_fails), time window for counting failures for the maximum failure limit (Fail_timeout), state (active - enabled, down - disabled, or draining - only receives requests from sessions previously bound through sticky). You can also delete the selected servers here.

Add server

Add a server to the upstream. Allows you to set the following parameters: address, backup server or not, Weight, maximum connection limit (Max_conns), maximum failure limit that marks a server as unavailable (Max_fails), failure counting time window (Fail_timeout), state (active - enabled, down - disabled, or draining - only receives requests from sessions previously bound through sticky).

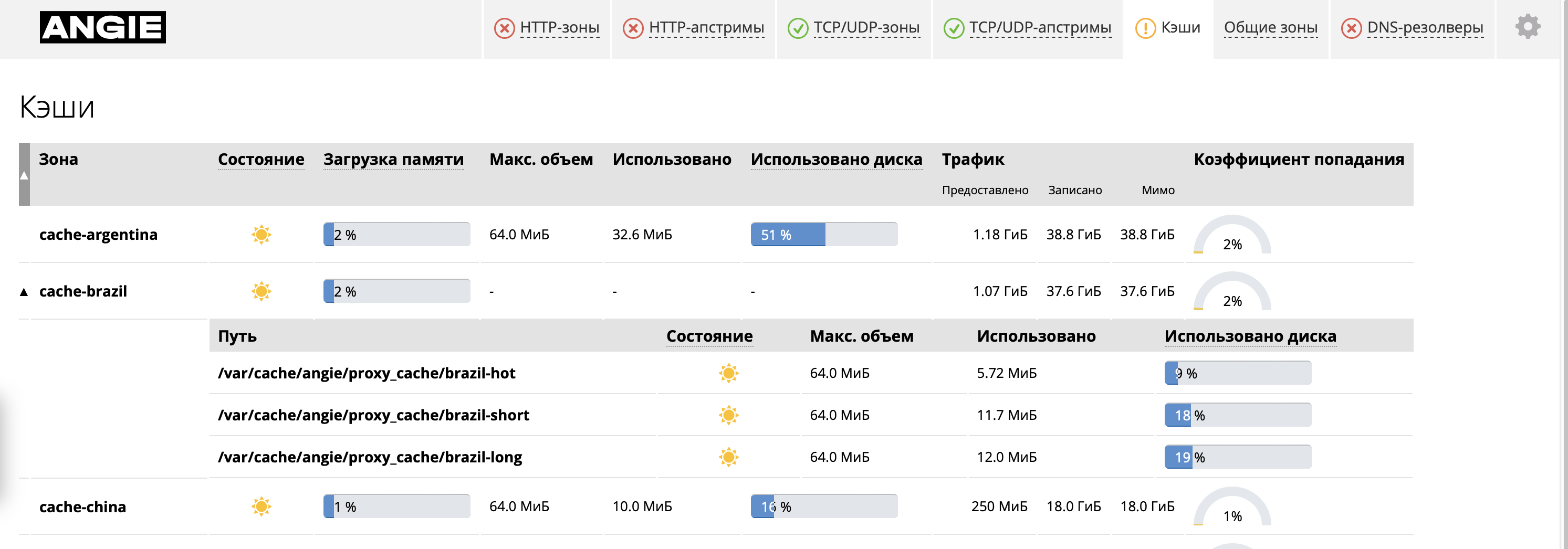

Caches Tab

Attention

Requires setting the proxy_cache_path directive in the http context.

This tab summarizes monitoring statistics for proxy_cache zones in the http context, generated from the /status/http/caches/ API section. The following data is presented for each zone:

Zone	Zone name Hint Click the icon next to Zone to open or close the lists of shards for all zones that have them.
State	Cache state: cold (metadata being loaded into memory) or hot (metadata loaded)
Memory usage	Memory utilization ratio
Max size	Maximum memory size
Used	Used memory size
Disk usage	Disk utilization ratio
Traffic	Traffic served from cache, written to cache, and returned bypassing the cache
Hit ratio	Cache hit ratio (ratio of traffic served from cache to total volume)

If sharding is enabled for a zone, it is shown as a dropdown list that lists individual shards:

Path	Shard path on disk
State	Shard state: cold (metadata being loaded into memory) or hot (metadata loaded)
Max size	Maximum memory size
Used	Used memory size
Disk usage	Disk utilization ratio

Shared Zones Tab

This tab summarizes monitoring statistics for all shared memory zones across all contexts. The following data is presented for each zone:

Zone	Zone name Hint Click the arrow next to Zone to sort zones by size or configuration order.
Total memory pages	Total number of memory pages
Used memory pages	Number of memory pages used
Memory usage	Memory utilization ratio for the zone

DNS Resolvers Tab

Attention

Requires setting the resolver directive in the http context.

This tab summarizes query statistics in DNS shared memory zones, generated from the /status/resolvers/ API section. The following data is presented for each zone:

Zone	Zone name Hint Click the arrow next to Zone to sort zones by state or configuration order.
Requests	Number of A and AAAA, SRV, PTR type requests
Responses	Number of responses broken down by corresponding codes (Success, Format error, Server failure, Name error, Not implemented, Refused and others)

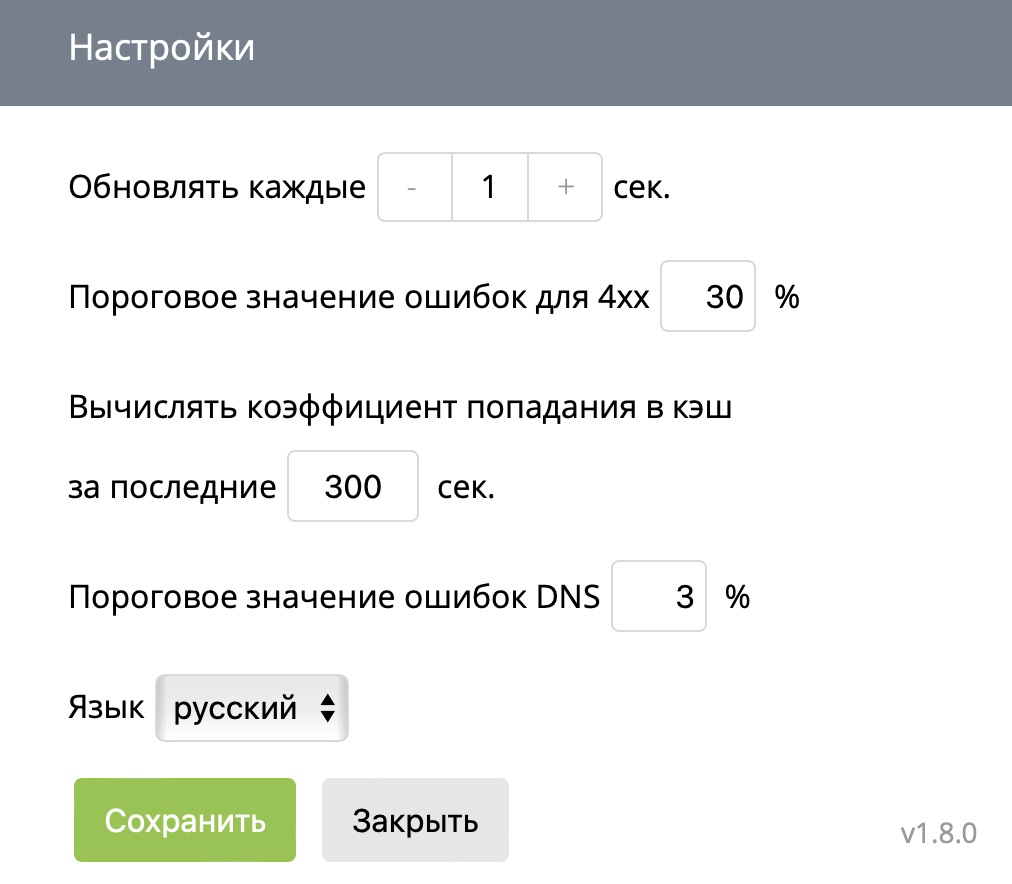

Settings Widget

Allows you to configure general console parameters:

• Data refresh rate. Default value — 1 sec.

• Threshold ratio for 4xx statuses. When the threshold is reached, "yellow" warnings appear in the corresponding sections related to server responses. Default value — 7%.

• Time window for calculating the cache hit ratio. Default value — 300 sec.

• Error threshold for the resolver. When the threshold is reached, the resolver will turn "red". Default value — 3%.

• Console interface language. Available options: English and Russian. By default, the console language is selected based on the locale set in the browser.

Console Control Panel

On all tabs, in the middle of the left side of the page, there is a slide-out panel with two buttons . The top button pauses and resumes data updates from the API, while the bottom button allows you to update the data manually when updates are paused.
